The problem...
Condensing boilers produce water vapour during combustion, the water vapour condenses and latent heat passes into the system. Acidic water known as ‘condensate’, is produced. If the condensate is pumped straight to the drain, it can have a harmful effect on the environment.
Left untreated, hard water can seriously damage your central heating system and boiler, washing machine, dishwasher, shower and household pipework.
The solution...
CalDensate
CalDensate is designed to treat the acidic waste produced by all condensing boilers. The tough, non-corrosive, in-line unit is quick and easy to fit. There is no need to dig a condensate trap. CalDensate is versatile – it can be fitted with all makes of condensing boiler – even those that are situated above ground floor level.
The acidic waste from condensing boilers (condensate) damages the environment. Dealing responsibly with condensate is easy with CalDensate.
Benefits
Robust in-line unit
Complete with push-fit fittings for use with acidic water
Acid compatible – will not corrode
Unique cartridge refill
Suitable for installation with all combination boilers
No need to dig condensate traps
Perfect for boiler installations above ground level
Reusable unit and replaceable refill — less acidic and less landfill waste
| CalDensate Specification | |
|---|---|
| Length | 200mm (including fittings) |
| Diameter | 55mm (max) |
| Material | Acid Compatible - will not corrode |
| Fittings | Push-fit adapted for use with acidic water discharge |
| Maximum working pressure | 5 bar (70 psi) |
| Maximum temperature | 80 °C |
| Maximum flow rate | 1.08 l/sec (14gpm) |
| Consumables | Densate R Cartridge replaceable every 12 months |
CalDensate Replaceable Cartridges
The unique replaceable cartridges for CalDensate makes the unit even more environmentally friendly. Replacing the special cartridge does not require the complete replacement of the CalDensate unit and the cartridge only needs to be replaced every 12 months. Ask for the Densate R cartridge.

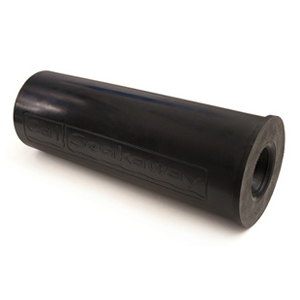

Soakaway
The CalSoakaway has been designed to fully conform to the latest regulations and has been manufactured to the highest possible standards using the latest material that will not degrade when in contact with acidic waste. The durable housing has the recommended number of outlets for the acidic waste to disperse from the calcium carbonate whilst the universal cap provides installations to cope with 22mm, 35mm and 42mm condensate pipe.
This ensures that the product is easy to install, saving time and money, whilst providing the confidence to installers that they are meeting the current regulations.
Benefits
Total acid protection
10 year warranty
No replacement needed
Lasts the lifetime of the boiler – based on boiler replacement scheme
Simple to install and easy discharge
No need to dig condensate traps
Compatible with 22mm, 35 mm and 42mm condensate pipe
